Moulding & Core Production Lines
High-precision mould and core production systems designed for consistent quality and maximum efficiency.
Advanced Casting Process
Core Pack Technology,
Core Pack Technology,
Built as One System
High-precision casting through pre-assembled core packages. Axmann designs, builds, installs, and commissions the entire line, from core shooters to sand reclamation.
What is Core Pack Technology?
The Modern Alternative to Green Sand and No-Bake
Core Pack Technology is an advanced sand-casting method where multiple pre-shot sand cores are assembled into a complete, self-supporting mould package. It bridges the gap between green sand and no-bake processes, unlocking far greater geometric complexity, tighter tolerances, and cleaner castings, with the throughput of automated series production.
Instead of building moulds around cores, the cores themselves become the mould. This enables intricate internal passages, undercuts, and thin-walled castings that are simply not possible with conventional techniques, making it the technology of choice for modern cylinder heads, engine blocks, hydraulic manifolds, and energy components.
How It Works
The 7-Step Core Pack Process
A continuous, automated flow from raw sand to finished casting, every stage engineered by Axmann.
1
Core Shooting
Automated core shooters form precise sand cores from resin-coated or cold-box sand, the fundamental building blocks of the mould package.
2
Core Assembly
Individual cores are robotically positioned and joined, forming the complete, self-supporting mould geometry without an outer flask.
3
Gluing & Bonding
Precision adhesive application bonds the cores into one rigid pack, ready to handle the thermal and hydrostatic loads of molten metal.
4
Coating & Drying
The assembled pack is coated to improve surface finish and prevent metal penetration, then dried in controlled-atmosphere ovens.
5
Pouring
Automated pouring systems deliver molten metal with controlled flow rates and temperatures, ensuring consistent casting quality.
6
Cooling
Packs travel through cooling tunnels with precisely controlled residence times, delivering stable mechanical properties in the finished part.
7
Shakeout & Reclamation
Castings are separated from sand; the sand is mechanically and thermally reclaimed for reuse, closing the loop and minimising waste.
Turnkey Scope
What Axmann Provides
One supplier. One integrated line. One point of accountability, from concept through commissioning to decades of reliable operation.
Automated core shooters (cold-box & hot-box)
Robotic core assembly and handling cells
Precision gluing and bonding stations
Coating lines & drying ovens
Automated pouring systems & pouring lines
Cooling tunnels & conveyor systems
Shakeout units & sand reclamation plants
Integrated control systems & line-wide automation

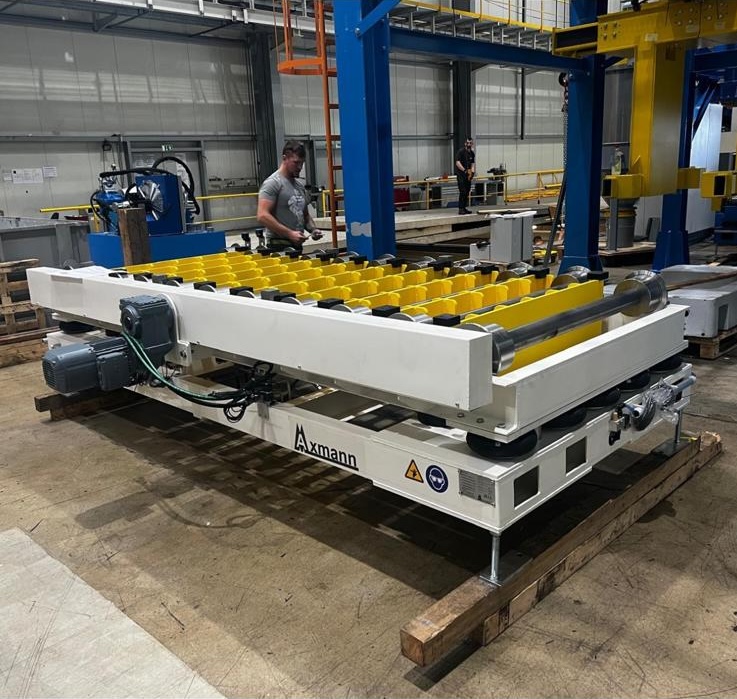

Gallery
Core Pack Technology in Detail
Why Core Pack?
Advantages Over Conventional Casting
Greater Geometric Complexity
Thin walls, undercuts, and internal channels that cannot be produced with green-sand moulding.
Superior Dimensional Accuracy
Tighter tolerances and repeatability across every pack, less machining, less scrap.
Higher Throughput
Continuous, automated flow rivals the speed of green-sand lines while delivering no-bake quality.
Reduced Manual Labour
Robotic assembly and handling remove the heaviest, most repetitive foundry tasks.
Lower Scrap Rates
Clean, stable moulds and controlled pouring mean fewer rejects, and more good castings per shift.
Closed-Loop Sustainability
Integrated reclamation returns sand to the line, reducing input costs and environmental impact.
Line in Operation
See an Axmann Core Pack Line in Action
Live footage from the Axmann-built Core Pack Technology line at the Kamlit Constanay Foundry in Kazakhstan, a complete turnkey casting installation engineered, fabricated and commissioned by Axmann.
Case Study
Kamlit Constanay Foundry, Kazakhstan
A flagship Axmann core pack installation delivering consistent, high-quality casting in one of Central Asia's most demanding industrial environments.
Challenge
Build a modern casting capability in a remote location, capable of producing complex parts to international standards, with long-term reliability under extreme operating conditions.
Axmann Solution
A complete, turnkey core pack line, engineered, fabricated, shipped, installed and commissioned by Axmann. One contract, one accountable partner, one integrated system.
Result
Stable, continuous production of high-quality castings, with the flexibility to scale output and adapt to future product demands. A long-term partnership that continues today.
Industries
Where Core Pack Technology Delivers
Wherever casting complexity, repeatability, and volume matter.
Automotive & Powertrain
Cylinder Heads & Engine Blocks
Hydraulic Manifolds & Components
Energy & Heavy Machinery
Complete the Line
Related Foundry Systems
Axmann engineers every stage of the casting line. These systems connect seamlessly with the product above, build your full foundry as one integrated solution.

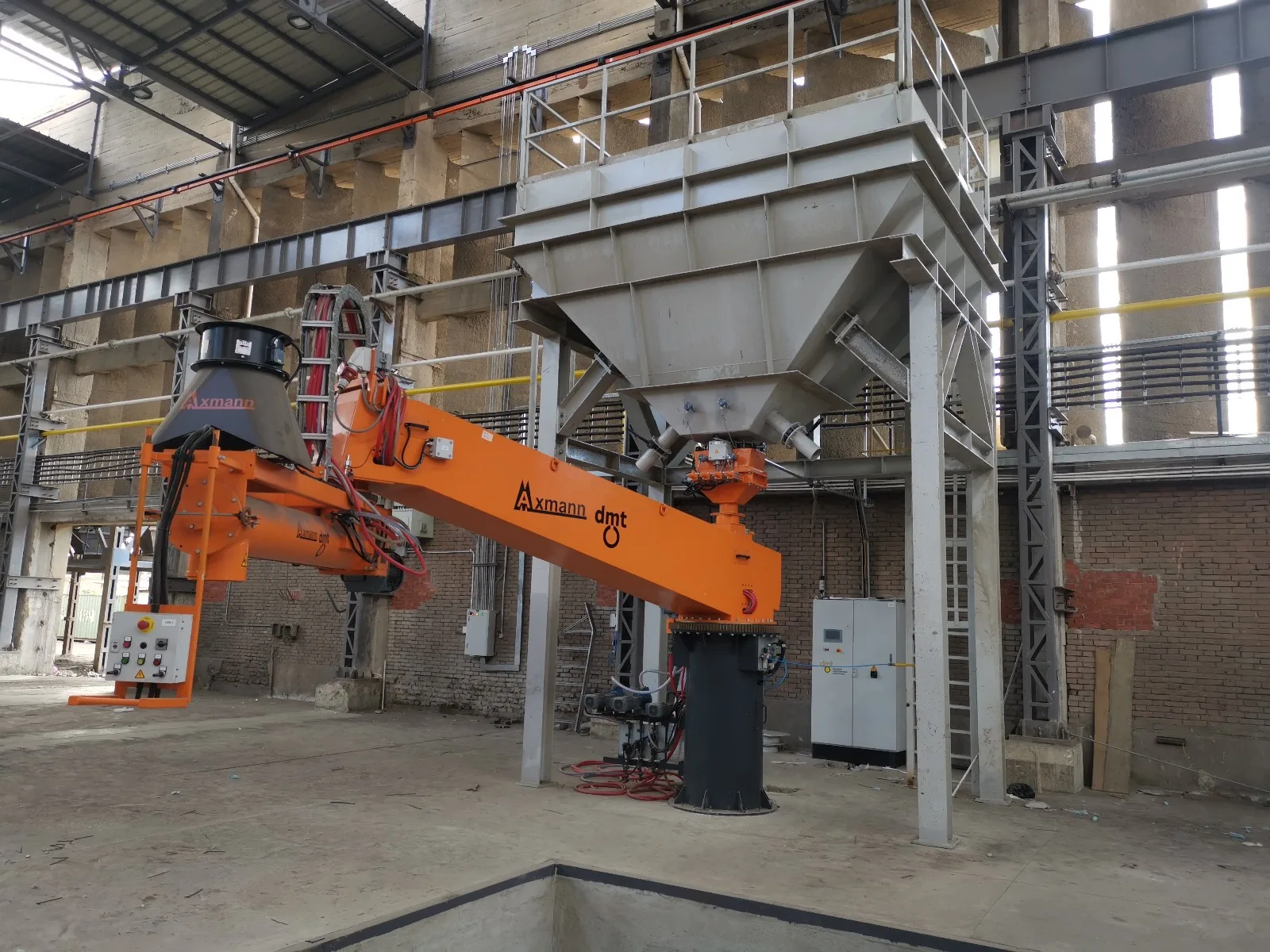

Sand Preparation & Regeneration Systems
Efficient, precise, and fully integrated sand processing solutions for modern foundries. From mixing to transport and reclamation.
No-Bake Technology
Complete chemically bonded sand lines, continuous mixers, pattern handling, pouring, cooling, shakeout & sand reclamation, engineered as one turnkey system.
Ready to Build?
Your Core Pack Line, Engineered End-to-End
Every core pack line is different. Materials, volumes, casting geometry, factory layout, automation level, Axmann engineers all of it around your specific production targets.
Talk to our engineers. We'll turn your requirements into a complete, commissioned production line.
Get in Touch
Request a Quote
Tell us about your casting needs, target volumes, and site conditions. Our engineers will respond with a tailored solution, typically within one business day.
